Huawei AR6280

This chapter shows an overview of the LEDs and connections on the router.

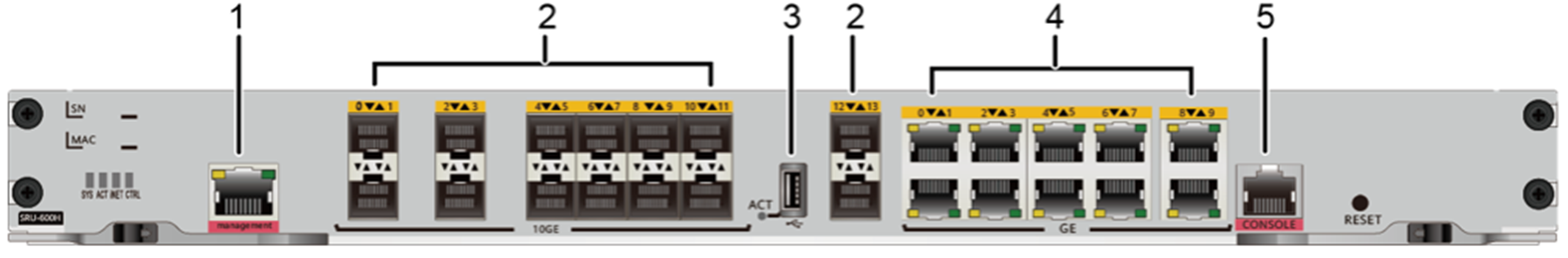

Structure and connections

Interface(s) number	Description	Note
1	Management GE Interface	Connector type RJ-45 This interface must be used for the Zero Touch Provisioning (ZTP) process during the installation.
2	WAN/LAN interfaces: fourteen 10GE optical interfaces.	Connector type LC/PC 10G or GE optical modules (SFP+ or SFP) can be inserted into these fourteen optical interfaces. Interfaces 12 and 13 cannot be used as LAN-Interfaces! Interface 12 is reserved for ABR (in case of ABR bandwidths greater than 1 Gbit/s) Interface 13 is used as WAN-Uplink Interfaces 8 and 9 can be used as link aggregation ports (LAG) Interfaces 10 and 11 are reserved to be used for the sync link in case of EC-XL with sync link
3	USB 2.0 Interface (not in use)
4	LAN interfaces: ten Gigabyte Ethernet electrical interfaces	Connector type RJ-45 Port GE9 is reserved for use as WAN port for ABR (Application Based routing) or Mobile Backup.
5	Ethernet Console port	Connector type RJ-45

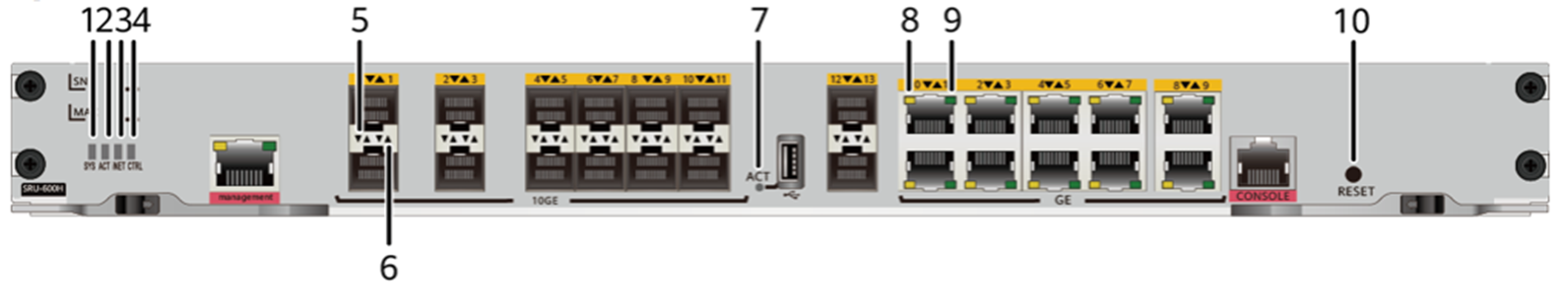

Description of the LEDs

Number	Indicator	Colour	Description
1	SYS	Green (normal state)	Slow blinking: The system is running properly. Fast blinking: The system is being powered on or restarting.
		red	Steady on: A fault that affects services has occurred and cannot be rectified automatically. The fault needs to be rectified manually.
		off	The system software is not running or is resetting.
2	ACT (active/standby status)	Green (normal state)	Steady on: The Switch and Router Unit (SRU) is in active state.
		off	The SRU is in standby state.
3	iNET	Green (normal state)	Steady on: The network service has been established.
		off	The network service is unavailable.
4	CRTL	Green	Steady on: The SDWAN Controller is managing the router.
		off	The SDWAN Controller does not manage the router.
5	ACT indicator from 10GE optical interface	yellow	Blinking: Data is being transmitted or received on the interface.
		off	No data is being transmitted or received on the interface.
6	Link indicator from 10GE optical interface	Green	Steady on: A link has been established on the interface
		off	No link has been established on the interface.
7	ACT (USB)	off	Not in use
8	ACT indicator from GE electrical interface	yellow	Blinking: Data is being transmitted or received on the interface.
		off	No data is being transmitted or received on the interface.
9	Link indicator from GE electrical interface	Green	Steady on: A link has been established on the interface
		off	No link has been established on the interface.
10	RESET button	This button is used to reset the router. To reset the router, hold down the button for at least 5 seconds. To reset and restore the FACTORY settings of the router, hold down the button for at least 30 seconds. Resetting the router will interrupt services. Exercise caution if you decide to press this button
