Enable IPSec VPN option

  • The IPSec VPN option allows you to build IPsec VPN tunnels to third-party locations.
  • If you ordered an External VPN Connection package, enable it as follows.

Restrictions​

  • Unlike other VPNs, an IPSec VPN cannot have an Internet connection.
  • IPSec VPN connections to DMZ, is not possible.
  • The remote VPN gateway can always reach the DMZ over the Internet.

Configuration: VPN Tunnel​

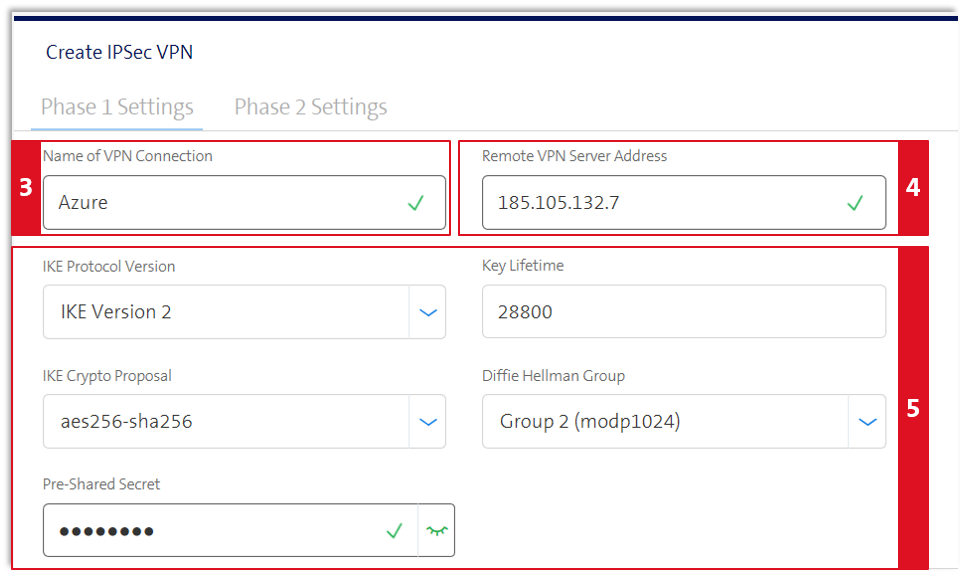

  1. In the EC Dashboard, click VPN

  2. Then click on the Create new IPSec VPN tab to create a new site-to-site tunnel

  3. Naming the VPN connection

  4. IP address of the remote gateway

  5. Set the encryption protocol (IKE protocol) to use, crypto proposal, and shared secret for IPsec Phase 1.

  • All parameters must be configured congruently for a fault-free connection on both the Enterprise Connect page and the remote station
  • in phase 1 the two VPN gateways exchange information about the encryption algorithms they support and then establish a temporary secure connection to exchange authentication information.

plot

  1. Confirm with good sign

  2. Save the configuration

Configuration: Define VPN target networks​

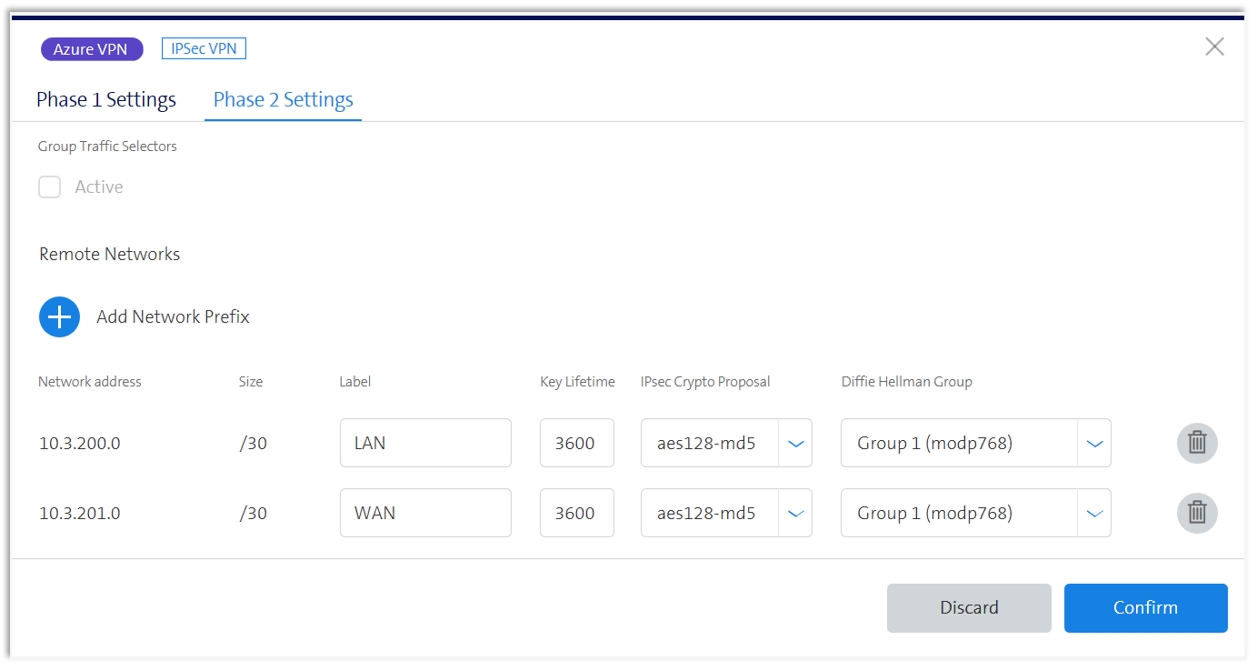

  • The Phase 2 parameters define the algorithms that the firewall unit can use to encrypt and transmit data for the rest of the session.
  • Additional settings must be made for IPSec Phase 2.
  • For connectivity to your target network, you have the option to add network prefixes to your IPSec VPN.
  • You can choose different encryptions for Phase 1 and Phase 2.

plot

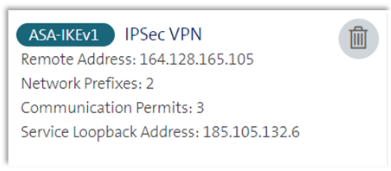

  • After setting up the IPSec VPN parameters in the EC Dashboard, a new window appears in the dashboard under VPN with the name of your newly created IPSec VPN (see figure below).
  • You can now proceed to set up the IPSec VPN on the remote gateway.
  • In the IP address box, enter the IP address that appears in the Service Loopback Address (see figure below).

plot

  1. Save the configuration

  2. By sending the shopping cart, the configuration is activated
