Firewall rules for S-NAT and S-PAT

  • If you want to add rules to incoming traffic, you can do so via S-NAT links.
  • Once you have established an S-NAT connection in the Enterprise Connect Dashboard, you can add firewall rules for inbound and outbound traffic.
  • How to get into the ordering process: Order Management

Configuration​

  1. Please go to the appropriate connection via Security > S-NAT-Links.
  2. Select Inbound
  3. The firewall must be turned on.
  4. To add a new rule for Incoming traffic, click Add Rule.

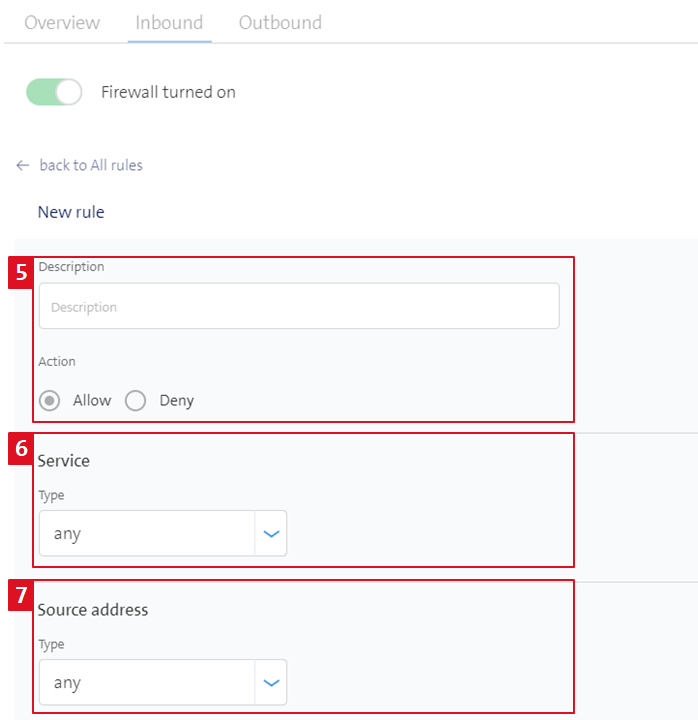

  5. Please give your new rule a description, then choose between Allow and Block.
  6. Select the Service. Here you have two options: Port Range or Any.
  7. Finally, you must select the source address. Here you have 4 options: any, prefix, IP range, IP address.

plot

  1. Confirm the entries with the Good sign*

  2. Save the configuration

  3. By sending the shoppting cart, the configuration is activated
