Confiugre Radius on LAN Switches

• How to get into the ordering process: Order Management
• Standard IEEE 802.1X provides you with a general method for authentication and authorisation in IEEE 802 networks
• The prerequisite for this configuration is the Registrate Radius server in the Dashboard

1. Select the relevant location
2. In the Switch menu item, you can activate 802.1X now
   • You can also integrate the primary and secondary Radius server
   • The secondary Radius server is optional

Assign LAN ports

---

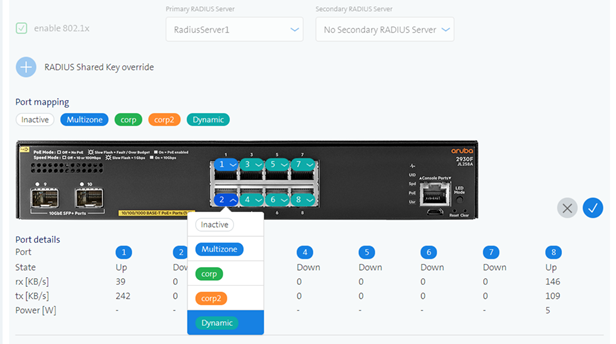

• As soon as you have activated 802.1X and entered a Radius server, the Dynamic group appears and you can assign the LAN ports to this group
• If you want to change the primary or secondary Radius server, you must disable 802.1X, submit the order and reset 802.1X Note: If you click on the Dynamic group, you can select the corresponding ports on the switch (multiple selection possible)

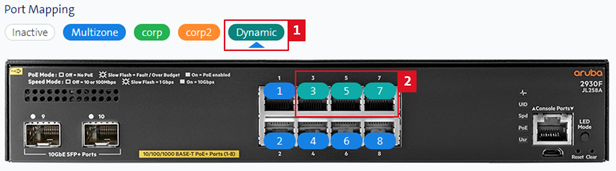

1. Click on Dynamic
2. Select the desired ports with Dynamic

RADIUS Shared Key override

---

• If you want to assign the Radius client switch a separate password (shared key), you can do this under RADIUS Shared Key override.
• You must also configure this in the Radius server.

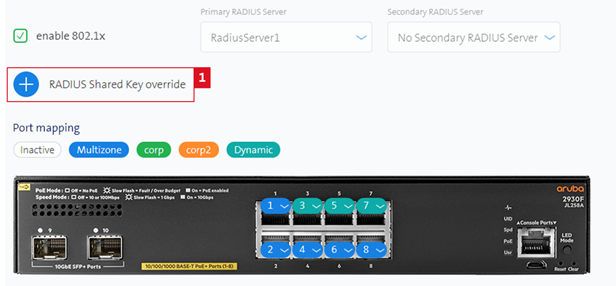

1. Click on Radius Shared Key override:

• Under Overview in the Settings > RADIUS Server menu item, you see all the switches connected on the Radius server, including passwords and location address.
• Here, you also see whether the password was overridden.

Complete configuration

---

• All configurations are not actively written to the network components until you have sent the shopping cart.
• You can do this after each step or (recommended) only after several steps.
